Technical specifications motors with carbon brush
- Meets the extensive requirements of modern drive motor technology
- Complies with the regulations for rotary, electric motor machines according
- to VDE 0530
- Fully laminated
- Stator housings produced from aluminum profiles
- Ribbed housing provides good heat dissipation
- Produced in various frame sizes and designs
- Equipped with an auxiliary pole winding and compensating winding in a 4-
- pole design
- Available in size: 56, 71, 80, 90, 100, 112, 132 and 160
- 2-pole design available in sizes 71 and 90
Permanent magnet DC motor with carbon brush
Characteristics:
- high efficiency due to no copper losses in the stator
- stator is fitted with permanent magnets
- rotor is provided with copper wire
- performance comparable to shunt DC motors
- constant speed with varying load

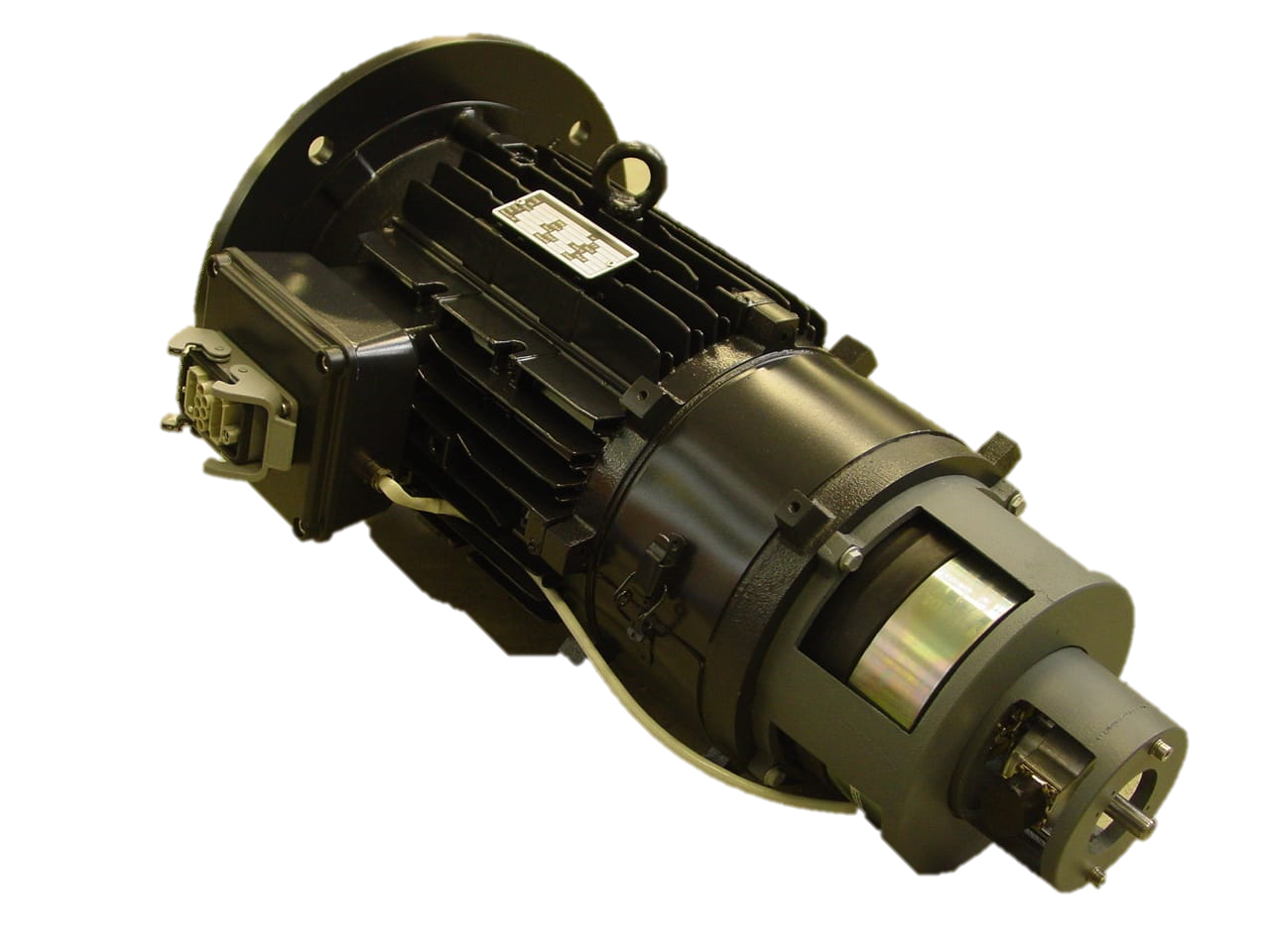

Classic DC motor with carbon brush
Characteristics:
- widely applicable
- stator and rotor with copper wire
- “wound field motor”
- (DC motor)
- variety of electrical circuits
- choice between shunt circuit, series circuit or compound circuit
- possibility to switch on the motor completely in one go, even at high voltages
Options
- EK: Own cooling
- TDEK: AC tachograph and own cooling
- TGEK: DC tachograph and own cooling
- REK: Brake and own cooling
- UK: Independent Cooling
- TDVK: AC tachograph and independent cooling
- TGVK: DC tachograph and independent cooling
- RVK: Brake and independent cooling
- RTDVK: Brake, AC tachograph and independent cooling
- RTGVK: Brake, DC tachograph and independent cooling
Additional specifications:
- standard in protection degree IP54
- on request in degree of protection IP55, IP65
